Kit Accessories

A range of EOD IEDD Tools included in Sansolo Kits

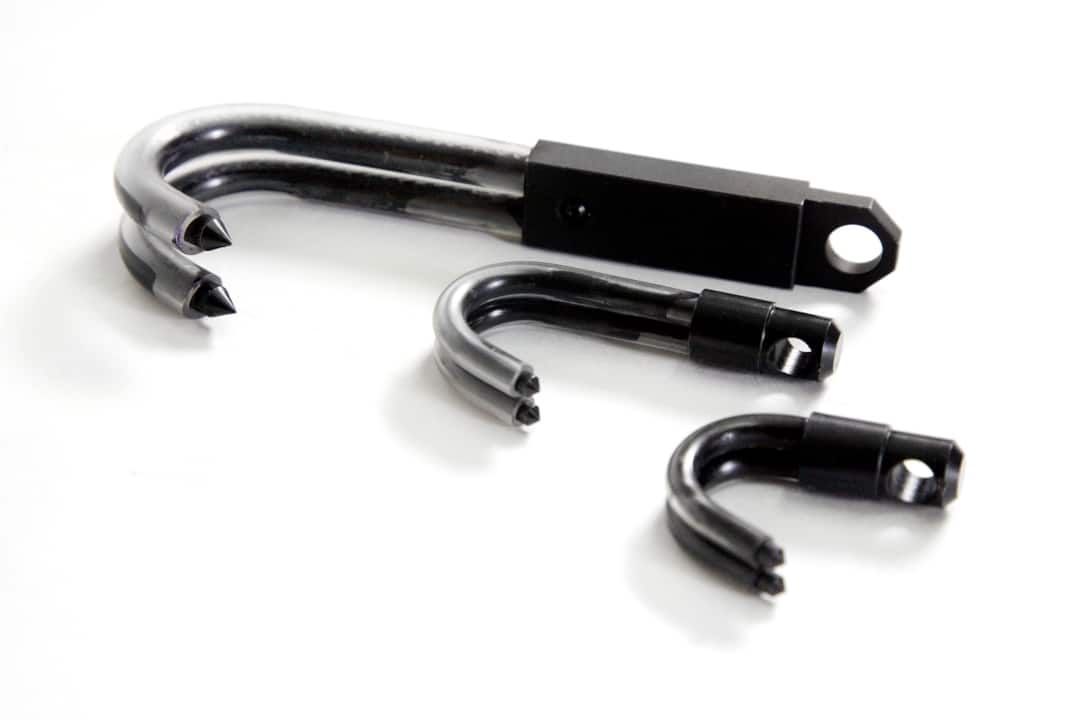

SL-032 - Folding Anchor

A Folding Anchor for pulling explosive devices
Made of stainless steel, its horns fold with sleeves insulated against short circuits, with a hole for connecting the ring at the end of the cord to the spool.
Non-magnetic, No-rustThis item is also used as a part of the SL-030 Sansolo Kit.

Technical Specifications
Weight: about 140 gr.
Anchor Span: 56 mm
Length: 140 mm
Width: 50 mm
Height: 17 mm

SL-032K - Folding Anchor

A Folding Anchor for pulling explosive devices
Non-magnetic, No-rust

Technical Specifications
Weight: about 38 gr.
Anchor Span: 54 mm
Length: 70 mm
Width: 40 mm
Height: 13 mm

SL-032KK - Folding Anchor

A Folding Anchor for pulling explosive devices
Non-magnetic, No-rust

Technical Specifications
Weight: about 30 gr.
Anchor Span: 54 mm
Length: 45 mm
Width: 40 mm
Height: 13 mm

SL-066 - Double suspension element

For Pulling, Hanging, Lifting and for changing direction
Non-magnetic, No-rust

Technical Specifications
Weight: 130 gr.
Length: 216 mm
Width: 45 mm
Height: 6 mm

SL-067 - Anchoring Line

An anchoring line for fixations and tying

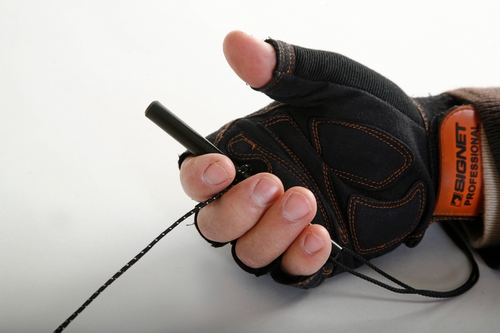

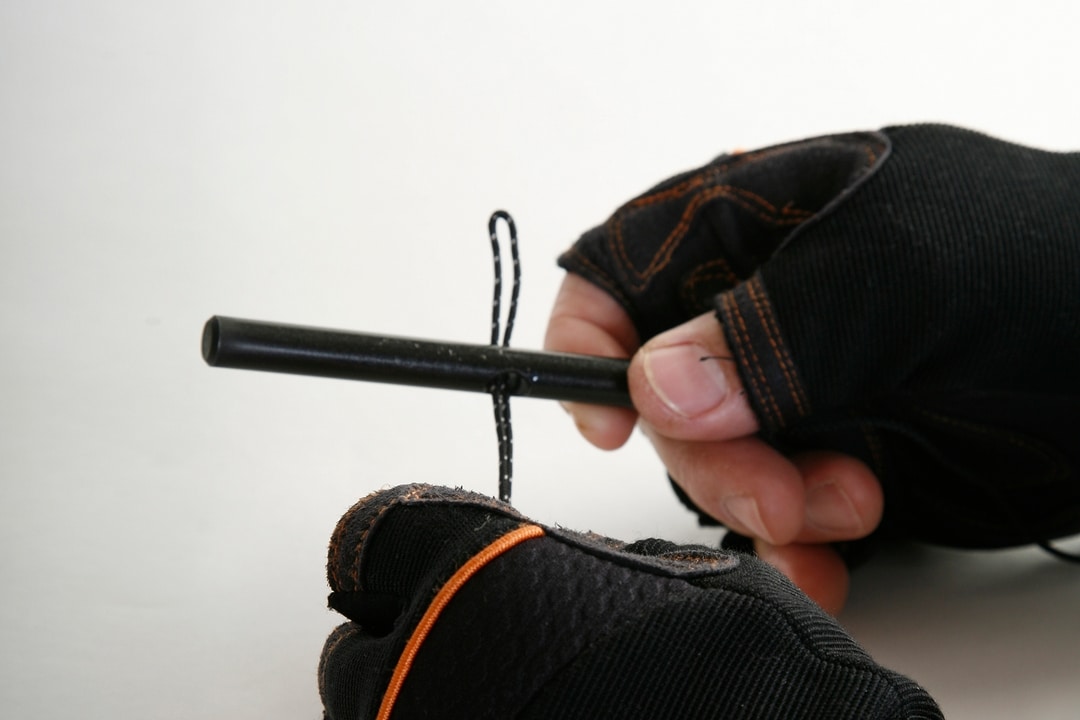

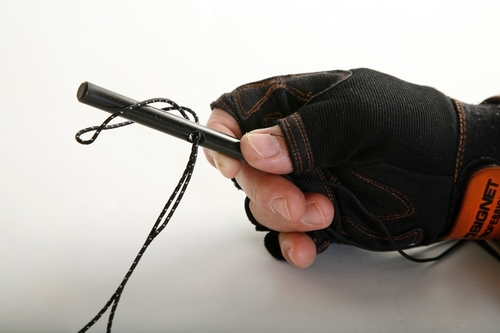

SL-068 - String Puller (Rod)

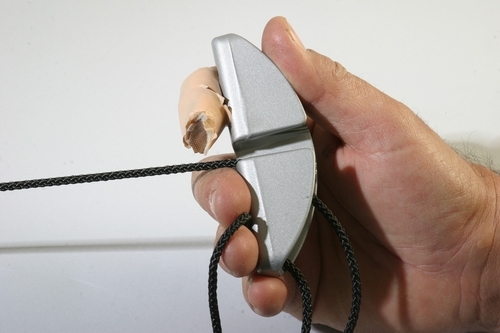

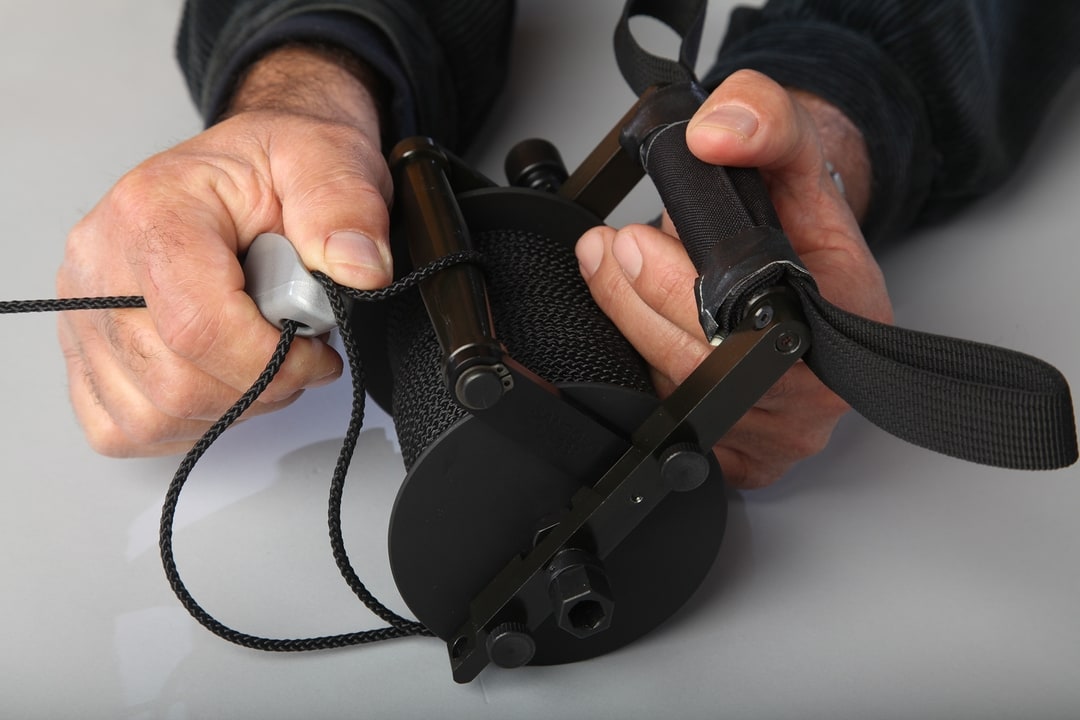

SL-086 - String Puller (Ocean)

SL-038 - A Protected Towing Hook

A hook for shaking, dragging, tearing of soft envelopes for handling by remotely pulling
The 65 mm hook is made of two horns that are protected by plastic sleeves against accidental user pricking.
The hook connects to a spool using a drawstring that is looped onto the hook.
This item is also used as a part of the SL-030 Sansolo Kit.

Technical Specifications
Large Hook: Length 75 mm, Weight 16 gr., Width 50 mm, Height 22 mm
Small Hook: Length 55 mm, Weight 8 gr., Width 43 mm, Height 13 mm

SL-065 - Opening swivel pulley

SL-065A - Swivel 6x60 + D-Ring Shackle.

Used for leading a string when lifting and changing direction

Carabiners

Ka.  Size: 4x40 mm , Weight 7 gr.
Kb.  Size: 5x40 mm , Weight 15 gr.
Kc.  Size: 7x70 mm , Weight 42 gr.

Aluminum Carabiners

Kd.  - D Carabiner  Size: 13x112 mm , Weight 88 gr.
Ko.  - Oval Carabiner  Size: 11x110 mm , Weight 78 gr.

SL-037 - A protected Disconnecting Knife

A knife for remote cutting of connected wires
Main purpose – disconnection and cutting electric wires in an electric system, remote cutting of connected wires by pulling.
The knife is made of a stainless steel housing that accommodates a blade. The hook knife is very sharp. Also intended for disconnecting wire cables, like a military telephone cable, the blade being protected by the polymer housing against unintentional cutting by the user. The knife connects to a pulling rope using a 5 X 50 mm ring that is connected to the knife housing hole.
This item is also used as a part of the SL-030 Sansolo Kit.

Technical Specifications
Large Hook: Length 75 mm, Weight 16 gr., Width 50 mm, Height 22 mm
Small Hook: Length 55 mm, Weight 8 gr., Width 43 mm, Height 13 mm

SL-143 - Miniature Prodder Kit

A small kit for delicate handling, manual handling, scratching, pulling, separating and securing mechanical apparatuses.
A fabric case with three pockets accommodating 4 different spikes with a thread that can be twisted onto a handle, coated with a rubber insulating sleeve. Tweezers with a plastic handle, a long, rounded spike, dental mirror, three catches and reserve blades for the protected knife.
This item is also used as a part of the SL-030 Sansolo Kit.

Technical Specifications
Weight: 95 gr
Length: 170 mm
Width: 65 mm
Thickness: 25 mm

SL-041 - Multi Purpose Prodder

A means for detecting mines, weapons and booby traps in various types of ground conditions, with a suitable working length for various operational tasks
· One device incorporating multi purpose tools and possibilities for performing various tasks
· Constructed so that it can be assembled with a suitable length for the user, for efficient work, including on all fours
· The prodder handle is also a protective working tool for security personnel who have to check flowerbeds and plant pots where there is no need for the prodder’s full working length
· The prodder can be used to detect trip wires up to the full height of the user, a device that has no equal in the world
· Light, portable, fast and easy to assemble and dismantleNon-magnetic, No-rust

Technical Specifications
Weight: 1200 gr
Height: 40 mm
Width: 120 mm
Length: 220 mm

SL-043 Miniature Prodder

A part of a small kit for handling explosive charges, a miniature kit in itself, a prodder for detecting mines and booby trapped weapons
· Light, small in size, portable, can be hung from a belt
· Can be assembled to the desired length, can be left in a state of readiness, consists of two parts
· Multi purpose for operational use. The handle contains devices for neutralization and detectionNon-magnetic, No-rust

Technical Specifications
Weight: 235 gr
Height: 180 mm
Width: 80 mm
Length: 30 mm

SL-044 Short Prodder

A Miniature kit for detecting mines and booby trapped weapons. Built especially for SL-030A.
· Light, small in size, portable, can be hung from a belt· Stainless steel
· Built of two jointsNon-magnetic, No-rust

Technical Specifications
Weight: 180 gr
Height: 180 mm
Width: 80 mm
Height: 35 mm (with case)

SL-045 Removal Spoon and Prodder

A Miniature kit for detecting mines and for removal of dirt around the mine.
· Light, small in size, portable
· Non-magnetic, No-rust, non-conductive

Technical Specifications
Weight: 354 gr
Handle Length: 185 mm, diameter 45mm
Handle and Spoon Length: 295 mm , diameter 60 mm
Handle + 2 joints length: 470 mm , diameter 45 mm

SL-046 - Telescopic Spike

A spike for handling explosive charges and booby trapped weapons
· Light, small in size, portable
· Non-magnetic, No-rust, non-conductive

Technical Specifications
Weight: 158 gr
Length: 320 mm (open)
Length: 186 mm (closed)
Diameter: 15.5 mm

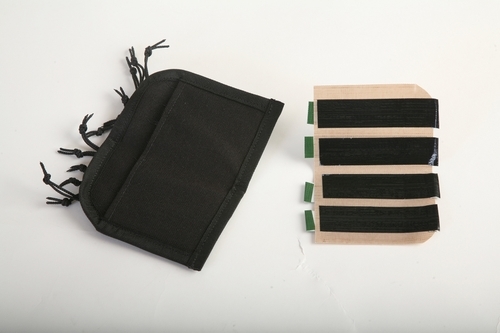

SL-243 - Safety Pin Kit - Pad without a case

A kit containing safety pins for securing mechanical apparatuses
Includes 12 short pins and 3 long pins.

Technical Specifications
Pad size: 125x165 mm

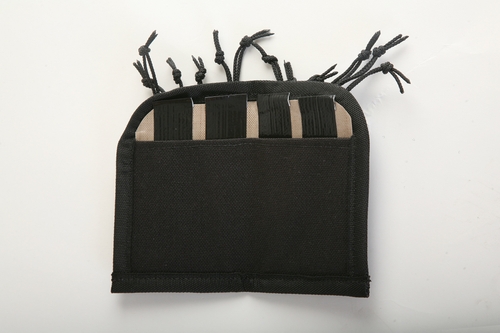

SL-243A - Safety Pin Kit - Pad folded in two, inside a case

A kit containing safety pins for securing mechanical apparatuses
Includes 12 short pins.

Technical Specifications
Pad size: 115x130 mm

SL-243B - Safety Pin Kit - Pad folded into four, inside a case

A kit containing safety pins for securing mechanical apparatuses
Includes 12 short pins.

Technical Specifications
Pad size: 140x65x35 mm

SL-069 - Trip Wire Marking Ribbon

A ribbon for detection and marking of trip wire
Suitable for use in the following cases – advantages:
· Throwing of ribbons forward on the route of advance of a force if there is fear of booby traps and trip wires.
· The ribbon can greatly help detect trip wire that is used for activating booby traps during combat, particularly in built up areas.
· Using a ribbon to mark dangerous ordnance on a route when there are problems for advancing forces.
· This device can be carried by each individual trooper. Ready for extraction and throwing as an accessory for paths that are free of booby trapped using trip wire, thus saving human life.
· The reel rolls up quickly and efficiency without further accessories.

Technical Specifications
Material: polymer, 10 meter color fabric ribbon
Weight: approximately 53 gr.
Diameter: 70 mm, 77 mm in the most protrusive place
Width: 25 mm

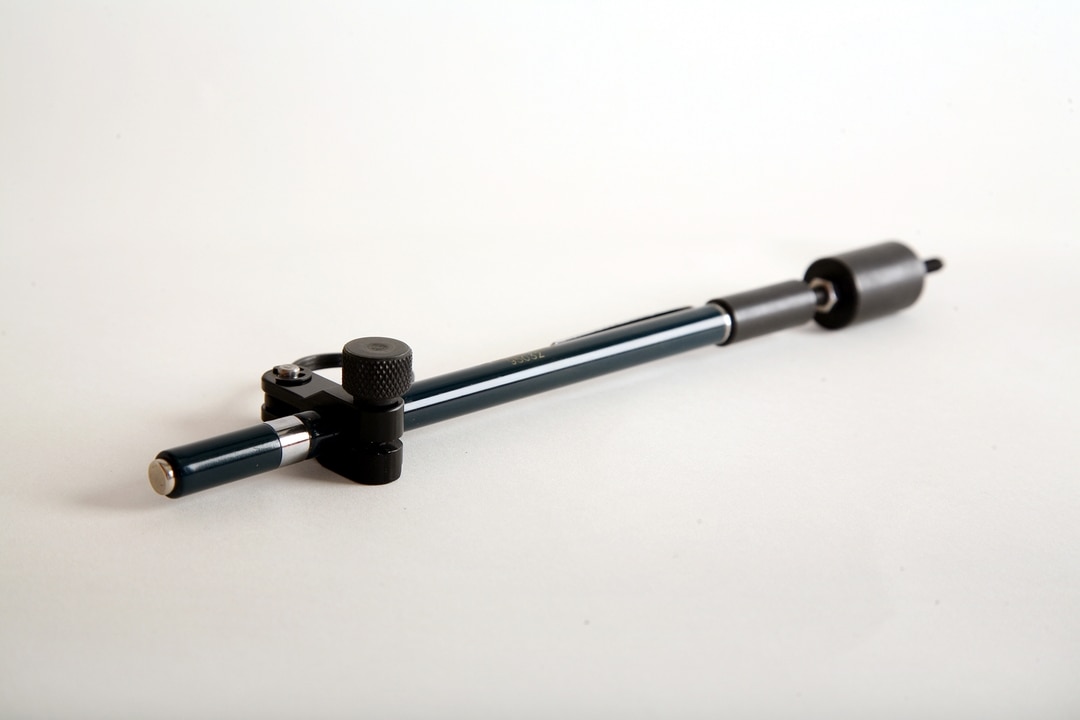

SL-276 - Trip Wire Detection Antenna

Telescopic antenna with a shaking element for detecting tripwire.
Pulling of metal elements using a magnet that is attached on an antenna from problematic places that cannot be reached by hand.
Collecting of fragments for testing using a magnet that is attached to an antenna.
Detection and marking of tripwire using color ribbon.
Observation with a mirror attached to an antenna.

Technical Specifications
Total weight, including case: 200 gr.
Folded length, with weight: 230 mm
Width, with shaking element: 45 mm
Open length, with weight: 720 mm
Materials: stainless steel, aluminum and polymers

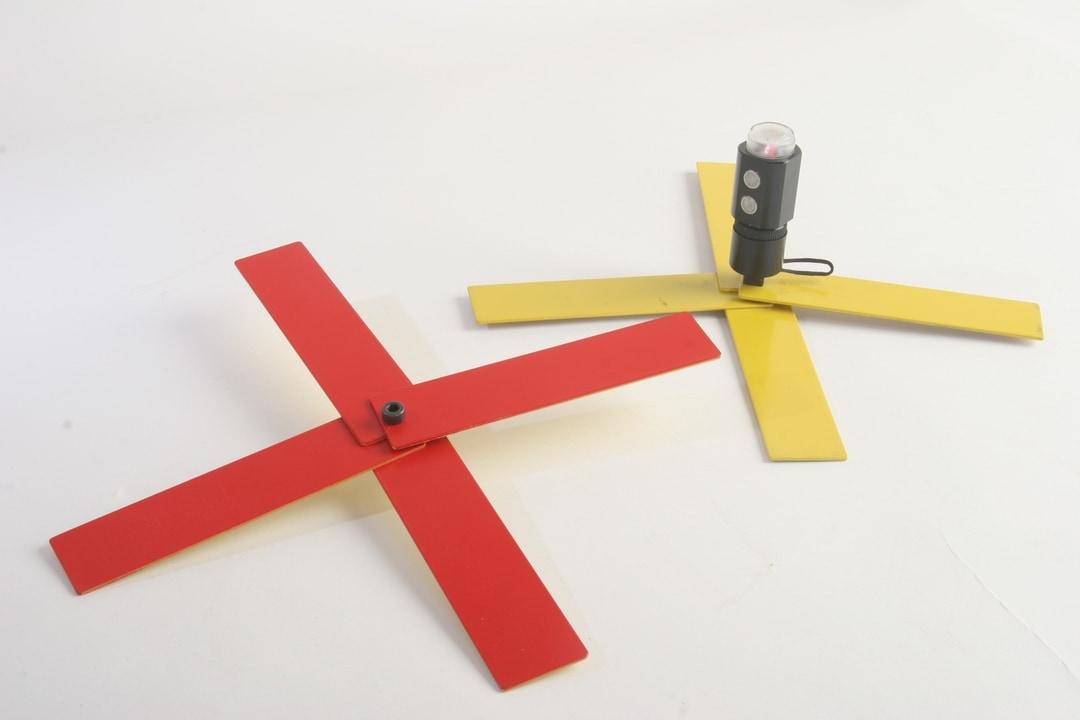

SL-176 - Marking Cross

A cross for marking explosive charges and dangerous weaponry

Technical Specifications
Weight: 75 gr.
Width: 30 mm
Length: 250 mm (open)
Length: 130 mm (folded)
Height: 27 mm

SL-090 - Containers for Batteries and Small Sensitive Elements

Spikes for attachment to the ground

SL-172 - Spike

Spike for attachment to the ground, for Sansolo marking kits
Designed for driving into the ground with a standard thread for the Sansolo product range
Made of stainless steel wire, a sharp penetrator, suitable for screw-on attachment of flashlights and day and night marketing devices.

Technical Specifications
Weight: 16 gr.
Length: 130 mm
Diameter: 5 mm

SL-172T - T Shaped Spike

For attaching Sansolo flashlights to the ground and anchoring marking ribbons or cords.
Made of two staggered stainless steel sharp probes. Push dome, stainless steel wire ear for securing or attaching marking tape or marking cord.

Technical Specifications
Weight: 35 gr.
Length: 135 mmWidth: 40mm
Cap Diameter: 17 mm

SL-172B - Double Spike

Designed for driving into the ground with a stable grip for the Sansolo product range
Made of a stainless steel rod, made of two staggered sharp probes that provide stability for attaching various marking products.

Technical Specifications
Weight: 26 gr.
Length: 130 mm
Width: 36mm
Diameter: 5 mm

SL-177 - Adjustable Spike

Intended for attaching flashlights and marking and anchoring equipment.
Made of a central part, a probe and a top part that is an adjustable handle. Adjustable in angle and direction, made of stainless steel.

Technical Specifications
Length - 185 mm
Diameter - 31 mm at widest point
Weight - 122 grams.

EOD Knives

SL-081 - Hook Knife

SL-082 - Double Bladed Knife

SL-083 - Scalpel Knife

SL-085 - Fixation Leg Strap

SL-087 - Stripping Knife (ceramic blades)

SL-084 - "V" Knife

For remote cutting

Crocodile pulling element

Quick attachment for pulling and towing

Vise jaw grip

For attachment of objects
