Exploders and Breaching

Exloders for Deploying Demolition Circuits & Charges
Door Breaching Pads

SL-056 - Breaching and Attack Pad

A pad for door breaching
Advantages:
Use of flexible polymer as a stop back instead of liquids.
Increasing the effect of explosives relative to the small quantity.
Reducing preparation and activation time, a rapid, convenient device for operational use.
The device has special detonator housings for rapid, safe connection.

Tactical Door Breaching



SL-050 - Breaching and Attack Box

Original Demolition Kit for an Extensive Range of Applications

Uses:
For attacking and neutralizing explosive charges
For breaking into a car trunk
For breaking through windows and blinds when entering buildings

Technical Specifications
Weight: 825 gr.
Height: 60 mm
Width: 90 mm
Length: 200 mm



SL-057 - Breaching and Attack Pad

A pad for breaching doors made of hard metal

Use of flexible polymer as an energy stop back instead of liquids or rubber.

Increasing the effect of explosives relative to the small quantity.

Reducing preparation and activation time, a rapid, convenient device for operational use.

The device solves problems related to difficult to breach doors.

The device has special explosives housings for rapid, safe and convenient connection.

Technical Specifications

Weight approximately 2200 to 2500 grams.

General body dimensions:

Length – 421 mm
Width – 202.5 mm
Height – 33 mm


Tactical Door Breaching

SL-020MI - Mini Exploder

Small power source for Deploying Demolition Circuits & Charges in the Fastest, Safest & most Reliable Manner Possible

· Part of the Sansolo kit
· To be used together with the Rapid Coil
· For quick operation
· Overcomes load resistance up to 40 Ω

Technical Specifications
Batteries: 3V (2 CR123A Lithium batteries)
Demolition version exploder
Weight: 100 grams (without batteries)
Diameter: 35 mm
Length: 80 mm

Exploder

SL-020 - Exploder Systems

Field-Proven System for Deploying Demolition Circuits & Charges in the Fastest, Safest & most Reliable Manner Possible

· A portable, compact & lightweight kit
· Quick connection of kit elements: power operated cable reel & exploder
· Immediate operation
· Impeccable operational reliability
· Suitable for multiple uses

The cylinder body is made of three major parts – the battery housing, electronics housing and connection to the exploder.
The exploder is manufactured in two models:
· Regular demolition model – two triggers
· Special counter-terrorist model – three PL connectors per connection.

The exploder is engaged by activation from a command panel in the electronics part
· Activation using left switch, with the connection terminals outward.
· Deactivation using right switch for automatic disarming.
· Automatic shutdown after 20 minutes of being on and active.

Technical Specifications

Batteries: 6 VDC (2 CR2V3 batteries)
Outlet: 320 VDC ± 10 VDC
Energy: 5 joules
Pulse time: 3 msec at 16 Ω
Charging time: 2.5 sec ±0.5 sec
Minimum number of activations with the same batteries: 100 for the short model, 600 for the long model.

Demolition version exploder
Weight: 356 grams
Diameter: 55 mm
Length: 146 mm

Special model exploder
Weight: 348 grams
Diameter: 55 mm
Length: 134 mm


SL-020KA - Rapid Deployment Electrical Cable

RF protected cable

Technical Specifications


20m Cable:

Weight: 400 gr.

Length: 140 mm

Diameter: 60 mm

30m Cable:

Weight: 525 gr.

Length: 175 mm

Diameter: 60 mm

SL-022 - Electrical Detonation Wire (Case)
A shielded electrical wire housed inside a case for short, rapid electrical activations in special operations

15/20 Meter shielded cable

Suitable for use in the following cases + advantages:
· An operational device that is protected against external influences, is suitable for very short electrical activations in special operations.
· Small weight and volume, very quick and convenient to operate. Operational with a detonator connection to a wire.
· A reliable, safe cable; can be deployed very quickly.

Technical Specifications
Resistance: 2.3 Ω to 15 m
Weight: 363 gr. at 15 meter cable length
410 gr. at 20 meter cable length
Length: 130 mm
Width: 120 mm
Height: 65 mm

SL-022E -Electrical Coaxial Detonation Wire 30m - In cases

30 Meter shielded cable

Technical Specifications

2mm cable

Resistance: 8-9 Ω to 30 m
Weight: 400 gr. at 30 meter cable
Length: 130 mm
Width: 120 mm
Height: 65 mm

SL-022L - Cord 1.5m Pulley (case) 40m
40 Meter cable

Includes an anchor, hook and a string puller


Technical Specifications

Weight: 310 gr. at 40 meter cable

Length: 120 mm
Width: 120 mm
Height: 60 mm
Tearing strength: 150Kg

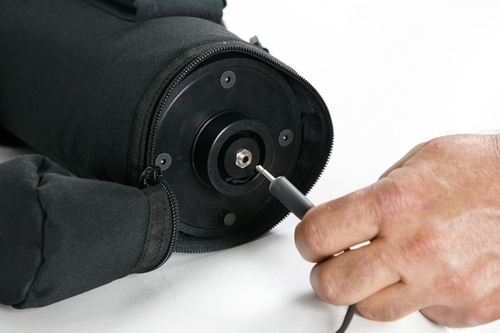

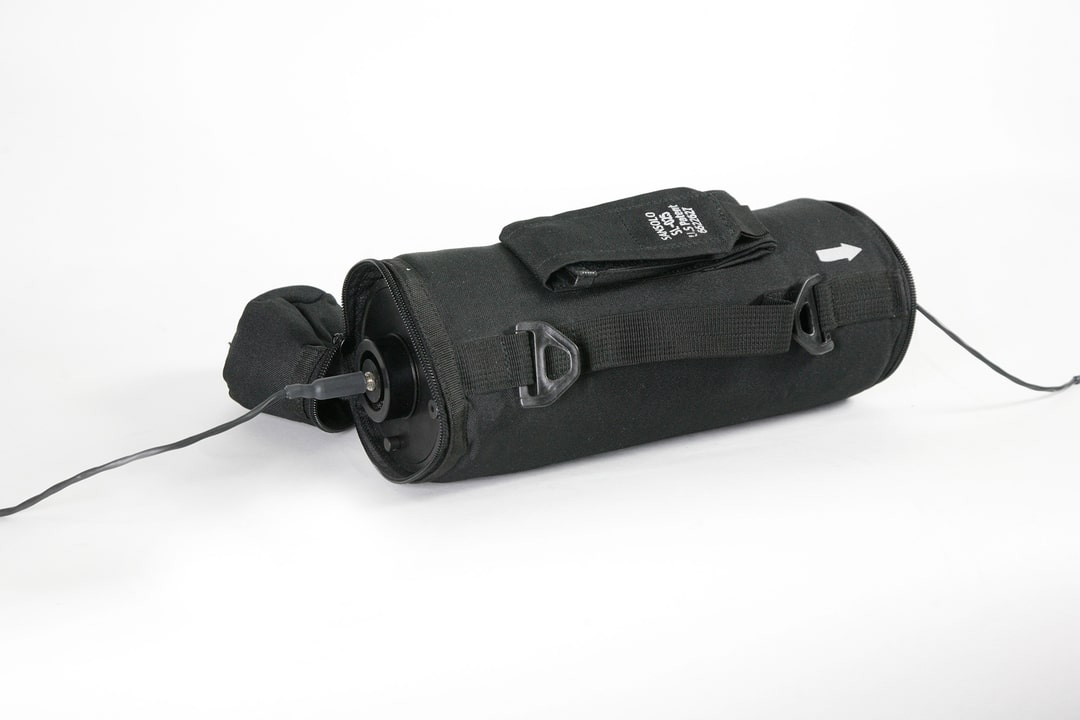

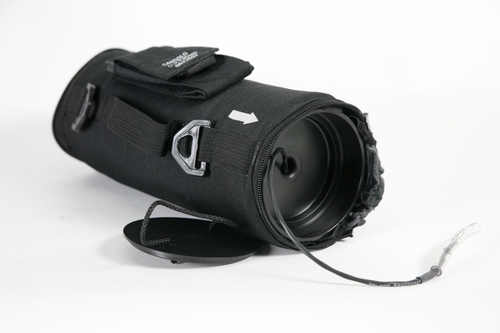

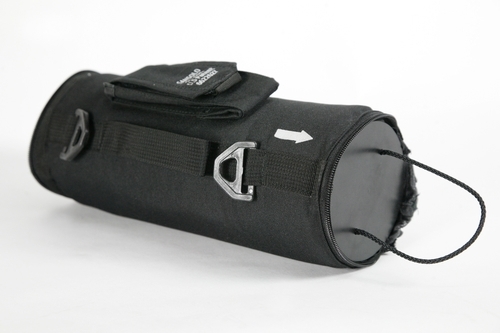

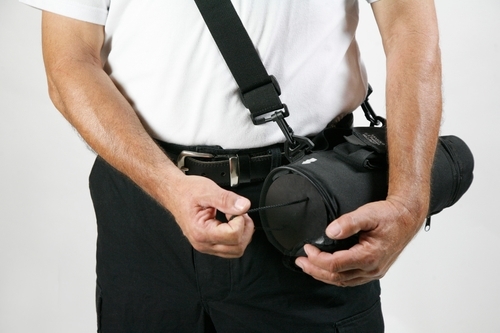

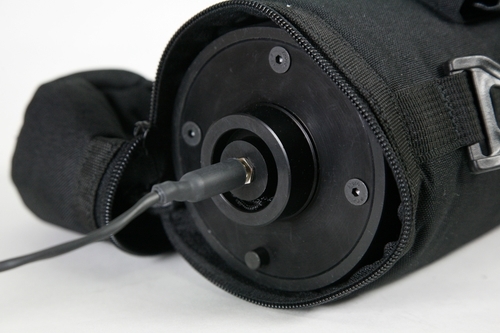

SL-025 - Power Cable Drum/Reel

Field-Proven cable for Deploying Demolition Circuits & Charges in the Fastest, Safest & most Reliable Manner Possible· 100 Meter shielded cable

· Specialized drum/reel for long-range, rapid cable deployment

· Designed for operation by EOD / IEDD specialists

· Unique internal structure & winding mechanism enable rapid deployment & easy, simplified operation

· Designed for long-term use



Technical Specifications

Cable length: 100 m
Weigh: 4000 gr.
Length: 310 mm
Diameter: 64 mm
